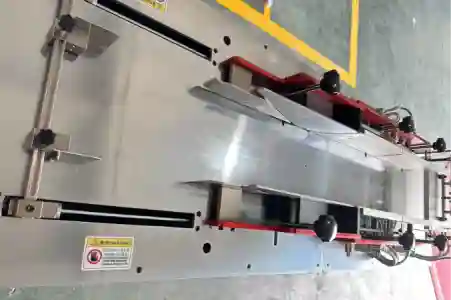

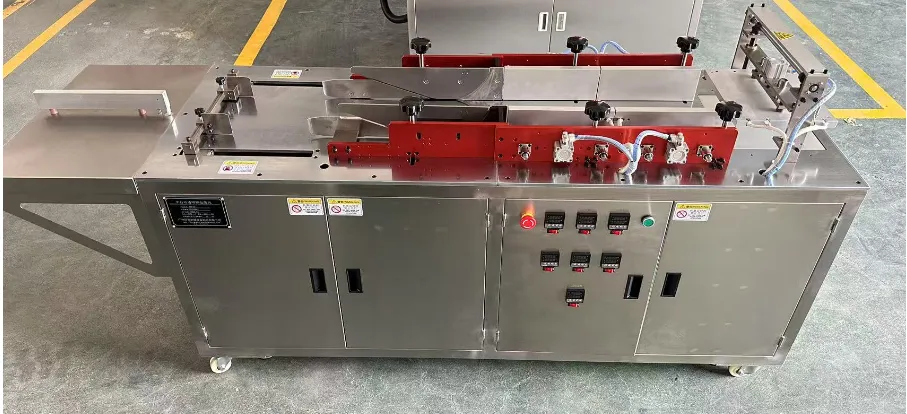

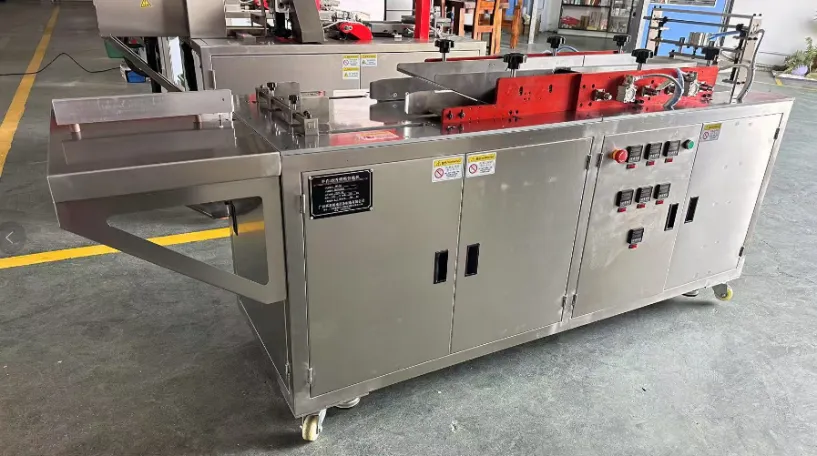

HM-50 Semi-Automatic
Products
HM-50 Semi-Automatic
This machine is mainly suitable for the exterior wrapping of square-boxed products in industries such as pharmaceuticals, food, health supplements, cosmetics, audiovisual products, and electronic daily necessities. It can wrap products such as medicines, chewing gum, health supplements, tea, sugar cubes, condoms, erasers, mosquito coils, cigarettes, tapes, VCDs (CDs), playing cards, transparent soap, square batteries, and floppy disks.
Product Description
Function Overview
This machine is mainly suitable for the exterior wrapping of square-boxed products in industries such as pharmaceuticals, food, health supplements, cosmetics, audiovisual products, and electronic daily necessities. It can wrap products such as medicines, chewing gum, health supplements, tea, sugar cubes, condoms, erasers, mosquito coils, cigarettes, tapes, VCDs (CDs), playing cards, transparent soap, square batteries, and floppy disks. After wrapping, it achieves:
Anti-counterfeiting, dustproof, and moisture-proof effects.
Improved product grade and added value.
Enhanced production efficiency and reduced production costs.
Main Features
Stable performance with easy operation and maintenance.
Neat and aesthetically pleasing packaging.
Capable of packaging extra-large boxes.
Equipment Workflow
Manual sealing and heating of the long side → placing products on material handling fixtures → feeding → folding corners left, right, top, and bottom → sealing left and right sides of the product → sealing top and bottom of the product → completion
Main Technical Specifications
| Model | HM-50 |
| Packing Speed: | 10–25 boxes/minute |
| Packing Size | Length 50–270 mm, Width 40–200 mm, Height 18–80 mm (cannot take extreme values simultaneously) |
| Packing Material | BOPP |
| Packing Material Requirements | Sheet film, thickness 0.018–0.040 mm |
| Heat Sealing Temperature | 100-150℃ |
| Power Supply | 220V/50HZ |
| Total Power | 2KW |
| Overall Noise | ＜59dB |
| Dimensions (L × W × H) | Machine: 2200 × 600 × 1100 mm |
| Machine Weight | 200kg |
| Wooden Crate Weight | 350KG |
