HM-200A
Products
HM-200A

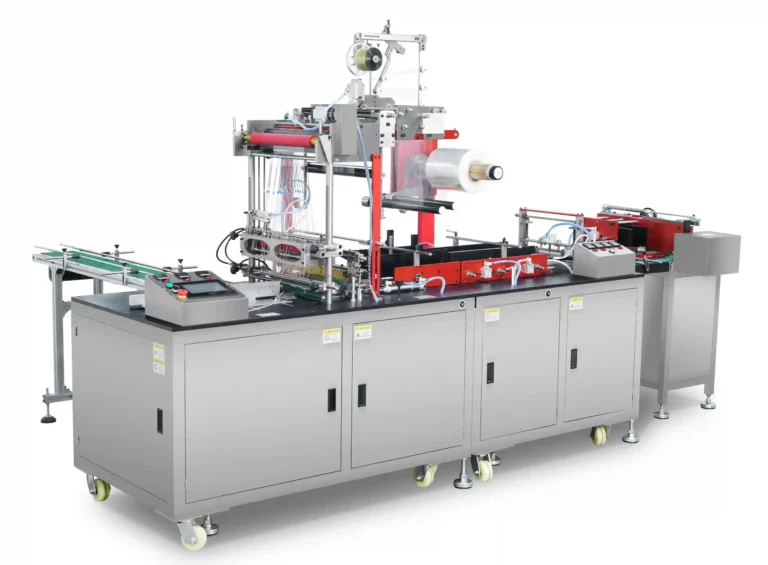

This machine is widely applicable for automatic middle-pack aggregation or full single-box wrapping of various boxed products in industries such as pharmaceuticals, food, health supplements, cosmetics, daily necessities, stationery, and playing cards. Products packaged by this machine achieve the “Three Protections and Three Enhancements” functions: anti-counterfeiting, moisture-proof, dust-proof; while enhancing product grade, adding product value, and improving product exterior decoration quality.
The machine adopts imported PLC control and an integrated electromechanical system. It is reliable, easy to use, and can work in coordination with cartoning machines, case packers, and other equipment. It is a domestically advanced three-dimensional packaging machine suitable for medium-pack aggregation or larger boxed items.
Product Description
Function Overview
This machine is widely applicable for automatic middle-pack aggregation or full single-box wrapping of various boxed products in industries such as pharmaceuticals, food, health supplements, cosmetics, daily necessities, stationery, and playing cards. Products packaged by this machine achieve the “Three Protections and Three Enhancements” functions: anti-counterfeiting, moisture-proof, dust-proof; while enhancing product grade, adding product value, and improving product exterior decoration quality.
The machine adopts imported PLC control and an integrated electromechanical system. It is reliable, easy to use, and can work in coordination with cartoning machines, case packers, and other equipment. It is a domestically advanced three-dimensional packaging machine suitable for medium-pack aggregation or larger boxed items.
Main Features

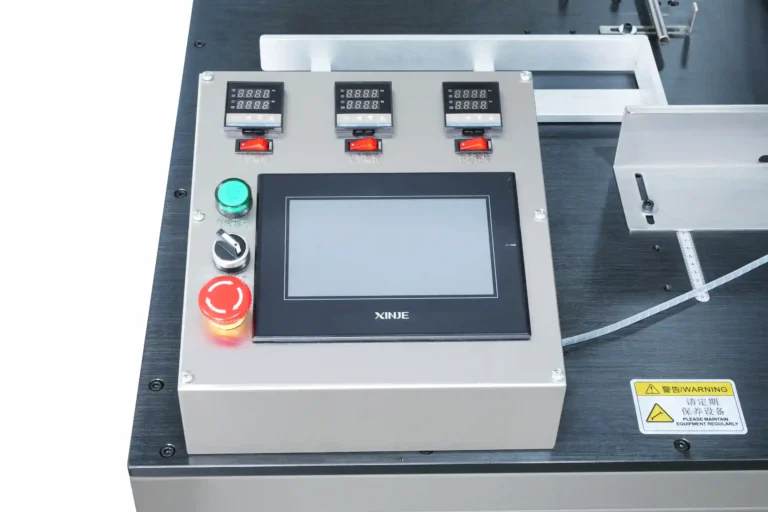

- Equipped with a Human-Machine Interface (HMI) and PLC control with fault diagnosis and prompts.

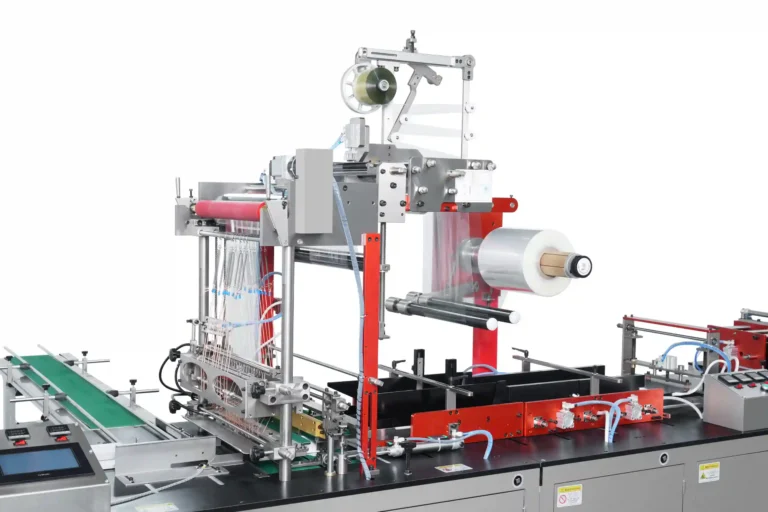

- Servo motor-driven automatic film feeding with adjustable speed and length; smooth and precise film feeding.
- Fully cylinder-driven operation for stable and synchronized motion; easy adjustment and firm sealing.
- Compact structure, simple operation and maintenance, complete safety protection.
- Fully automatic functions: automatic feeding, film feeding, wrapping, heat sealing, shaping, and counting.
- Capable of packaging extra-large boxes, multi-box linking, and aggregated box packaging.
Equipment Workflow

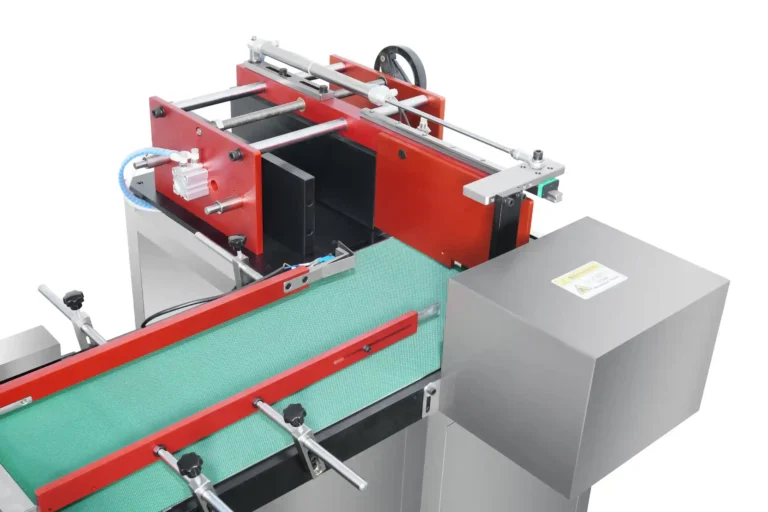

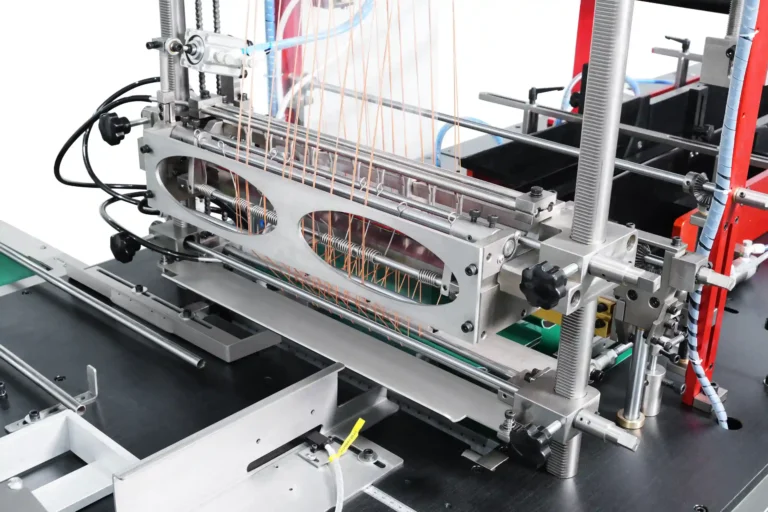

Manually place products onto material handling fixtures → feeding → lower film wrapping → heat sealing of product long side → fold corners left, right, top, and bottom → seal left and right sides → seal top and bottom → conveyor transport for six-side heat sealing → heat sealing of left and right sides for forming → completion
Main Technical Specifications
| NO. | Equipment Model | HM-200 | Remarks |
| 1 | Packing Speed | 20–45 boxes/min | Depends on the product |
| 2 | Carton Size | Length: 50–270 mm Width: 40–180 mm Height: 20–80 mm |
Box dimensions cannot simultaneously take maximum or minimum values. Maximum film width: 350 mm; Minimum film feeding: 170 mm; Maximum film feeding: 580 mm. Film length calculation: (Box Width + Height) × 2 |
| 3 | Motor Power | Total: approx. 11 kW | 12 kW at startup, 5 kW during operation |
| 4 | Power Supply | Three-phase 380 V AC 50/60 Hz | Power consumption: 6 kW/hour |
| 5 | Applicable Packaging Material | BOPP | Standard roll: 2400 m/roll; Easy-tear film: 5000 m/roll |
| 6 | Air Source | 0.6-0.8 Mpa | Air consumption: 290 L/min |
| 7 | Machine Dimensions | Corner layout: 3241 × 860+1540 × 1833 mm (L × W × H) | Linear layout: 3760 × 1100 × 1833 mm (L × W × H) |
| 8 | Machine Weight | Net weight: approx. 950 kg | Standard machine weight |
