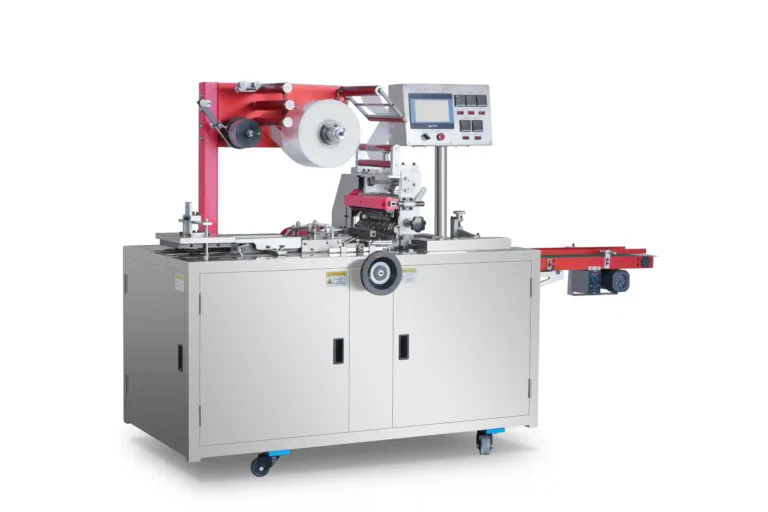

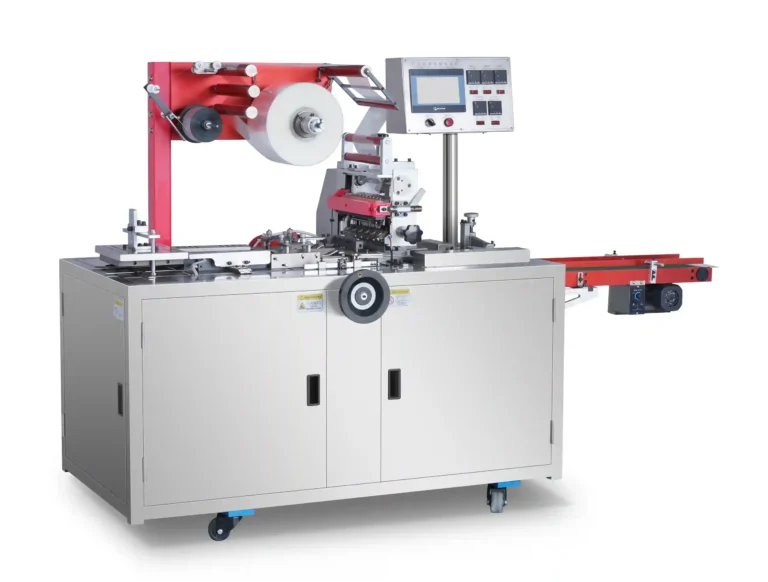

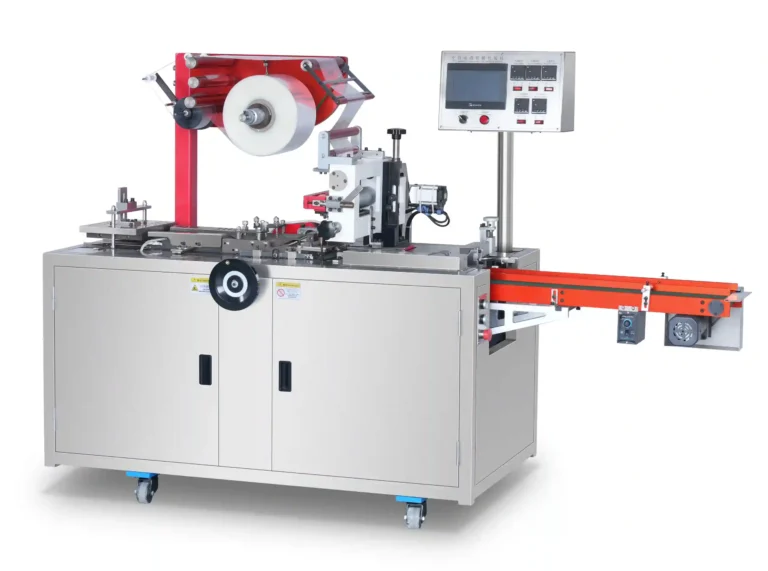

HM-150 Linear Machine
This machine is mainly suitable for exterior decorative wrapping of square-boxed products in industries such as tobacco, pharmaceuticals, food, health supplements, cosmetics, and audiovisual products. It can wrap items such as medicine boxes, chewing gum, health supplements, tea, sugar cubes, condoms, erasers, mosquito coils, e-cigarettes, tapes, VCDs (CDs), playing cards, transparent soap, square batteries, and floppy disks, providing anti-counterfeiting, moisture-proof, and dust-proof functions. It enhances product grade and adds value. This machine can work in coordination with cartoning machines for linked production.
Product Description
Function Overview
This machine is mainly suitable for exterior decorative wrapping of square-boxed products in industries such as tobacco, pharmaceuticals, food, health supplements, cosmetics, and audiovisual products. It can wrap items such as medicine boxes, chewing gum, health supplements, tea, sugar cubes, condoms, erasers, mosquito coils, e-cigarettes, tapes, VCDs (CDs), playing cards, transparent soap, square batteries, and floppy disks, providing anti-counterfeiting, moisture-proof, and dust-proof functions. It enhances product grade and adds value. This machine can work in coordination with cartoning machines for linked production.
Main Features
- Compact and reasonable structure, stable and advanced performance, easy operation and maintenance, with outer frame made of stainless steel.

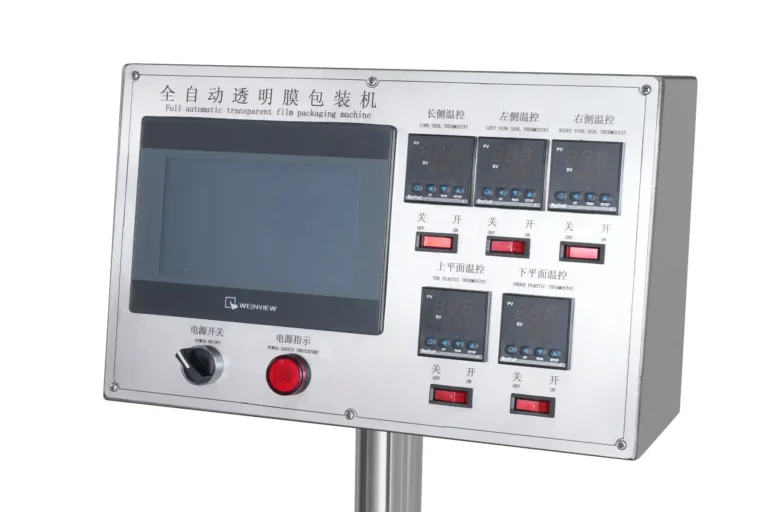

- Equipped with a multifunctional digital display inverter, providing stepless speed adjustment.
- Includes a pull-line device for easy-tear openings.
- Mold replacement is convenient and fast.
- Features automatic feeding and automatic counting functions.
- Transmission components are equipped with various protective devices and fault indicators.
- Includes a trial-film clutch to avoid wasting packaging material.
Operating Workflow
Manually place products onto material handling fixtures → feeding → lower film wrapping → heat sealing of product long side → fold corners left, right, top, and bottom → seal left and right sides → seal top and bottom → completion
Main Technical Specifications
| NO. | Equipment Model | HM-150 | Remarks |
| 1 | Packing Speed | 40–80 boxes/min | Depends on the product |
| 2 | Carton Size | Length: 50–175 mm Width: 35–75 mm Height: 13–35 mm |
|
| 3 | Motor Power | 4KW | |
| 4 | Power Supply | 220V 50HZ | |
| 5 | Applicable Packaging Material | BOPP | |
| 6 | Air Source | 0.4~0.6 Mpa | |
| 7 | Machine Dimensions | 2300 × 850 × 1450 mm (L × W × H) | |
| 8 | Total Machine Weight | Approx. 450 kg |
